Niche clusters

ONTraC (Ordered Niche Trajectory Construction) is a niche-centered machine learning method for constructing spatially continuous trajectories. ONTraC differs from existing tools by treating a niche, rather than an individual cell, as the basic unit for spatial trajectory analysis. In this context, a niche is defined as a multicellular, spatially localized region where different cell types may coexist and interact. ONTraC seamlessly integrates cell-type composition and spatial information using a graph neural network framework.

ONTraC generates a niche cluster assignment matrix as an intermediate result. Users can use niche cluster information as spatial domains for downstream analysis. The following section outlines the process for running ONTraC on stereo-seq data and visualizing which niche cluster each cell belongs to.

Prepare

Install required packages and ONTraC

Please see the Installation Tutorial

Running ONTraC

ONTraC --meta-input data/stereo_seq_brain/original_data.csv --NN-dir output/stereo_seq_NN --GNN-dir output/stereo_seq_GNN --NT-dir output/stereo_seq_NT --device cuda -s 42 --lr 0.03 --hidden-feats 4 -k 6 --modularity-loss-weight 0.3 --regularization-loss-weight 0.1 --purity-loss-weight 300 --beta 0.03 2>&1 | tee log/stereo_seq.log

The input dataset and output files can be downloaded from Zenodo.

Visualization

Install required packages

pip install "ONTraC[analysis]"

Load modules

import numpy as np
import pandas as pd

import matplotlib as mpl

mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42
mpl.rcParams['font.family'] = 'Arial'
import matplotlib.pyplot as plt
import seaborn as sns

from ONTraC.analysis.data import AnaData

Plotting preparation

from optparse import Values

options = Values()
options.NN_dir = 'stereo_seq_NN'
options.GNN_dir = 'stereo_seq_GNN'
options.NT_dir = 'stereo_seq_NT'
options.log = 'stereo_seq_final.log'
options.reverse = True  # Set it to False if you don't want reverse NT score
options.output = None  # We save the output figure ourselves here
ana_data = AnaData(options)

Spatial niche cluster loadings distribution

from ONTraC.analysis.niche_cluster import plot_niche_cluster_loadings_dataset_from_anadata

fig, axes = plot_niche_cluster_loadings_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/Spatial_niche_clustering_loadings.png', dpi=100)

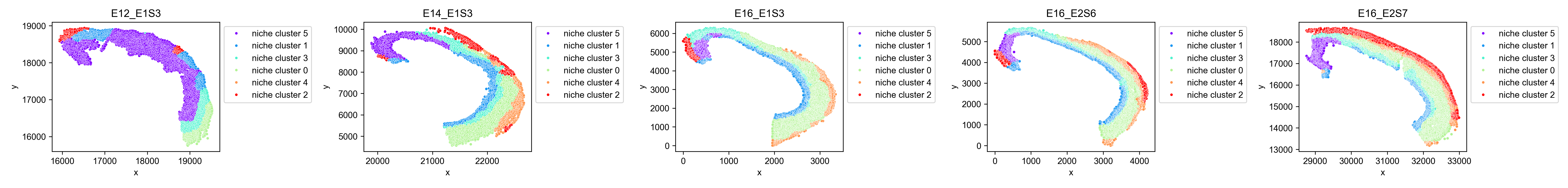

Spatial maximum niche cluster distribution

from ONTraC.analysis.niche_cluster import plot_max_niche_cluster_dataset_from_anadata

fig, axes = plot_max_niche_cluster_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/Spatial_max_niche_cluster.png', dpi=300)

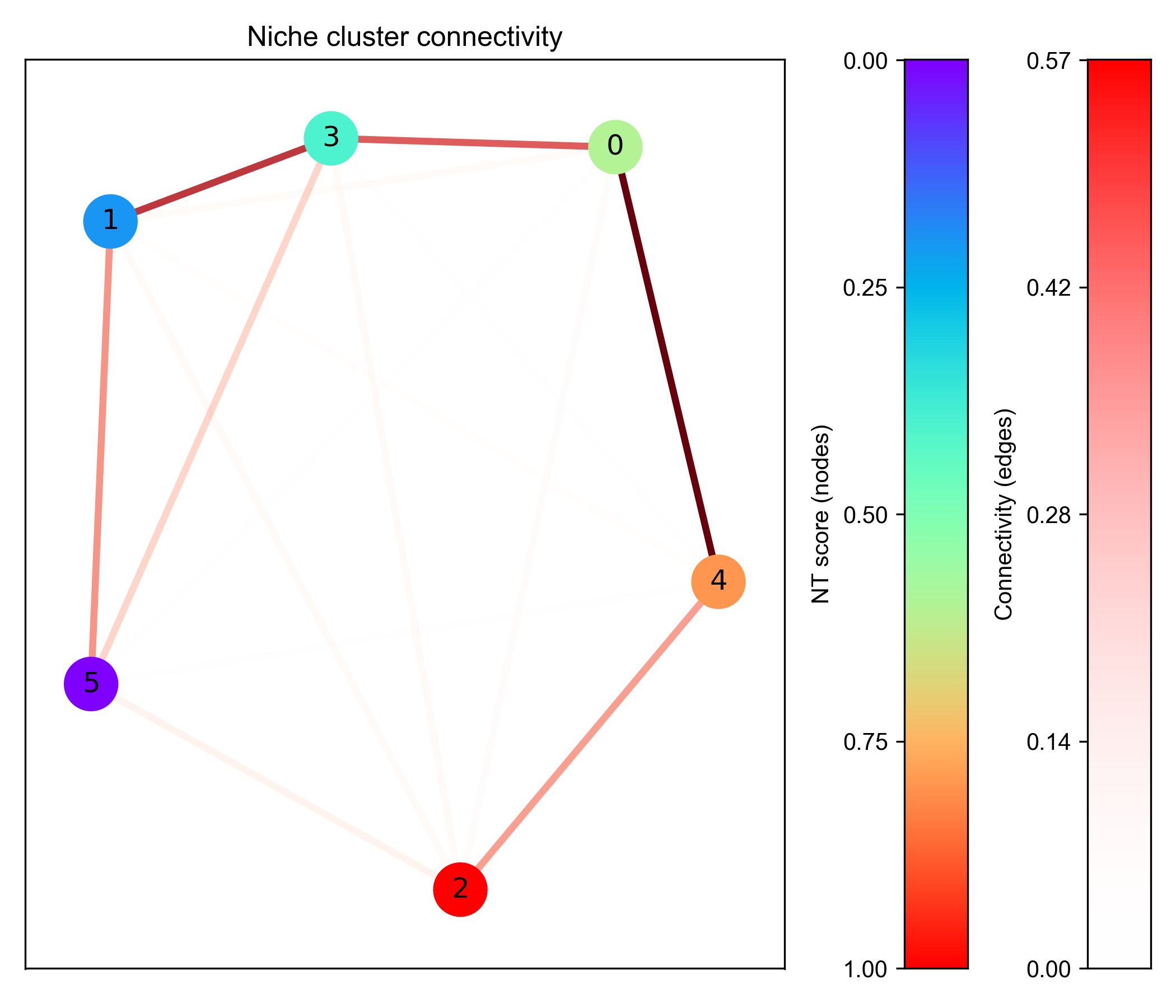

Niche cluster connectivity

from ONTraC.analysis.niche_cluster import plot_niche_cluster_connectivity_from_anadata

fig, axes = plot_niche_cluster_connectivity_from_anadata(ana_data=ana_data)
fig.savefig('figures/Niche_cluster_connectivity.png', dpi=300)

Niche cluster proportion

from ONTraC.analysis.niche_cluster import plot_cluster_proportion_from_anadata

fig, ax = plot_cluster_proportion_from_anadata(ana_data=ana_data)
fig.savefig('figures/Niche_cluster_proportions.png', dpi=300)

Cell type X niche cluster

Number of cells of each cell type cells in each niche cluster

from ONTraC.analysis.cell_type import plot_cell_type_loading_in_niche_clusters_from_anadata

g = plot_cell_type_loading_in_niche_clusters_from_anadata(ana_data=ana_data)
g.savefig('figures/cell_type_loading_in_niche_clusters.png', dpi=300)

Cell type composition in each niche cluster

from ONTraC.analysis.cell_type import plot_cell_type_com_in_niche_clusters_from_anadata

fig, ax = plot_cell_type_com_in_niche_clusters_from_anadata(ana_data=ana_data)
fig.savefig('figures/cell_type_composition_in_niche_clusters.png', dpi=300)

This heatmap shows the cell type composition within each niche cluster. The sum of each row equals 1.

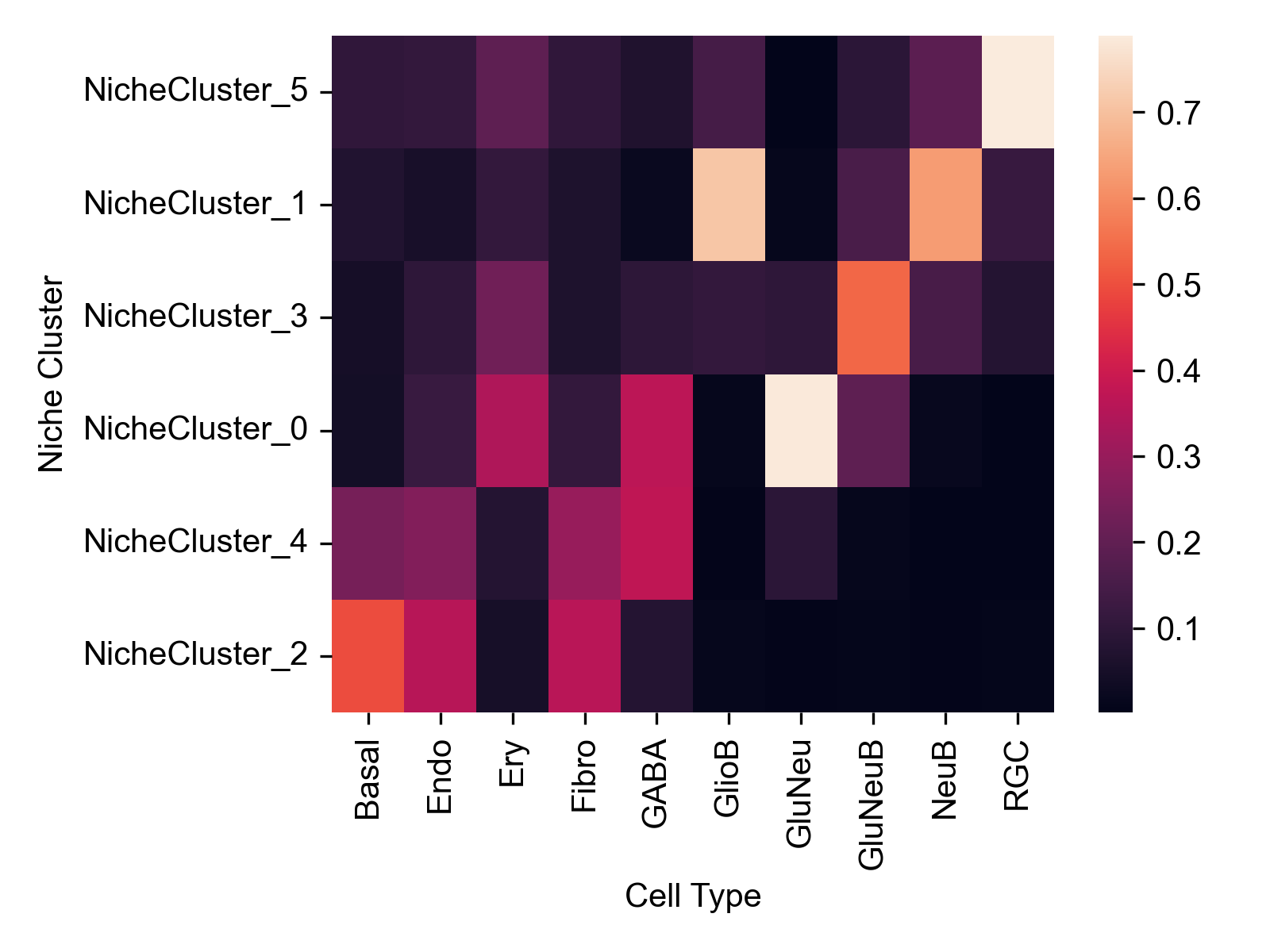

Cell type distribution across niche clusters

from ONTraC.analysis.cell_type import plot_cell_type_dis_across_niche_cluster_from_anadata

fig, ax = plot_cell_type_dis_across_niche_cluster_from_anadata(ana_data=ana_data)
fig.savefig('figures/cell_type_dis_across_niche_cluster.png', dpi=300)

This heatmap shows the cell type distribution across niche clusters. The sum of each column equals 1.

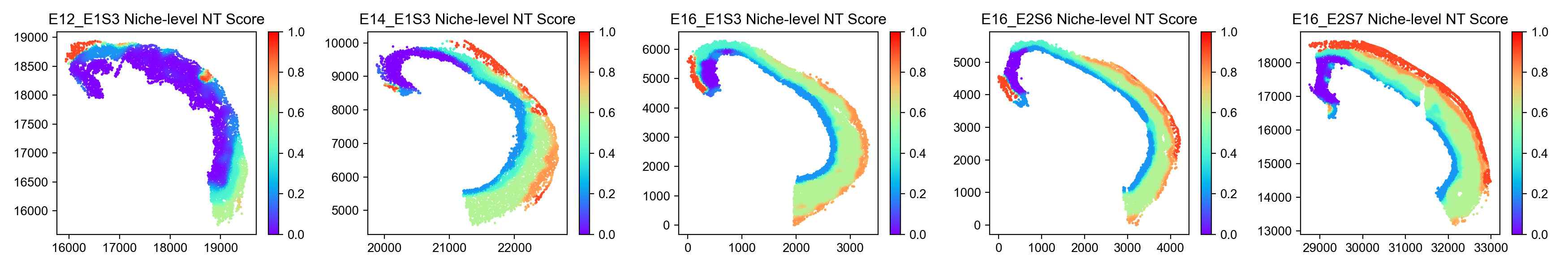

Spatial niche-level NT score distribution

from ONTraC.analysis.spatial import plot_niche_NT_score_dataset_from_anadata

fig, ax = plot_niche_NT_score_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/niche_NT_score.png', dpi=200)

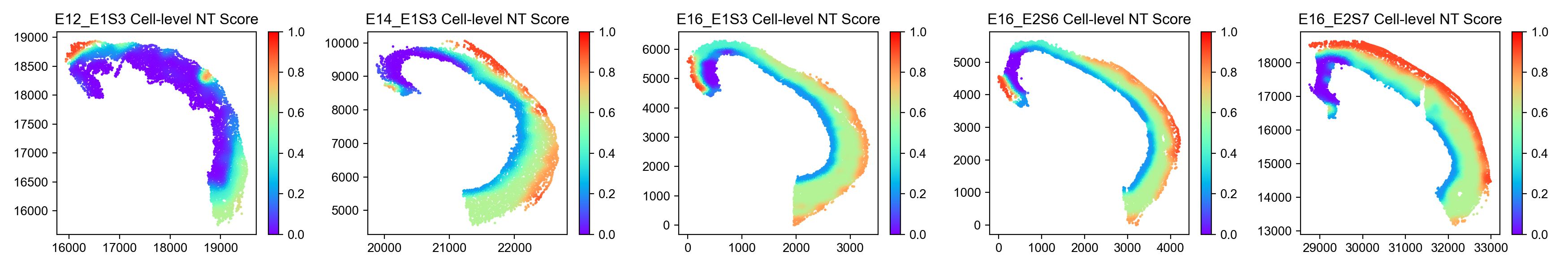

Spatial cell-level NT score distribution

from ONTraC.analysis.spatial import plot_cell_NT_score_dataset_from_anadata

fig, ax = plot_cell_NT_score_dataset_from_anadata(ana_data=ana_data)
fig.savefig('figures/cell_NT_score.png', dpi=200)

Cell-level NT score distribution for each cell type

from ONTraC.analysis.cell_type import plot_violin_cell_type_along_NT_score_from_anadata

fig, ax = plot_violin_cell_type_along_NT_score_from_anadata(ana_data=ana_data,
                                                            order=['RGC', 'GlioB', 'NeuB', 'GluNeuB', 'GluNeu', 'GABA', 'Ery', 'Endo', 'Fibro', 'Basal'],  # change based on your own dataset or remove this line
                                                           )
fig.savefig('figures/cell_type_along_NT_score_violin.png', dpi=300)
